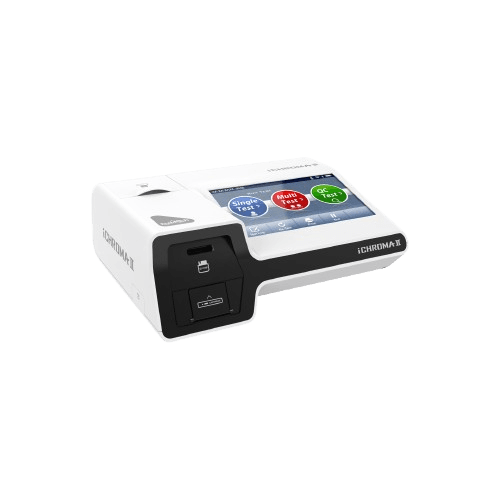

ichroma™ II is an automatic or semiautomatic in-vitro diagnostic device that measures the concentration of analytes in quantitative or semi-quantitative ways. This product was designed to improve data input efficiency and program update can be proceeded using SD card. It is also possible to use batteries which improves portability, the biggest advantages of point-of-care testing (POCT) equipment as it ensures reliable testing in unstable power environments
Specification
Dimensions
276 mm (L) x 220 mm (W) x 91 mm (H)
Weight
1.3 kg
Operation Temperature
15 – 35 ° Celcius
Communication Ports
USB 4 ports, LAN port, USB OTG port
Power Supply
DC 12V/5A, AC/DC Adaptor, (AA battery) DC 1.5V X 4ea. Input 100-240V ~ 50/60Hz, 1.8A. Output DC 12V/5A
Motor
Stepper Linear Actuator (5V, 0.34A)
Data Output
7” touch color LCD
Storage Temperature
Temperature -20 ~ 50°C, Humidity Max. 70%
Test Result Storage
Patient test results (1,000) / System check results (500) Standard material (control) test results (1,000)
